Required Equipment:

  • Trochar drain DR2012T.

  • Needle Free drain connector DR-FNV-3.

  • 4-way stopcock – SC4-W1FG or SC4-W3NB.

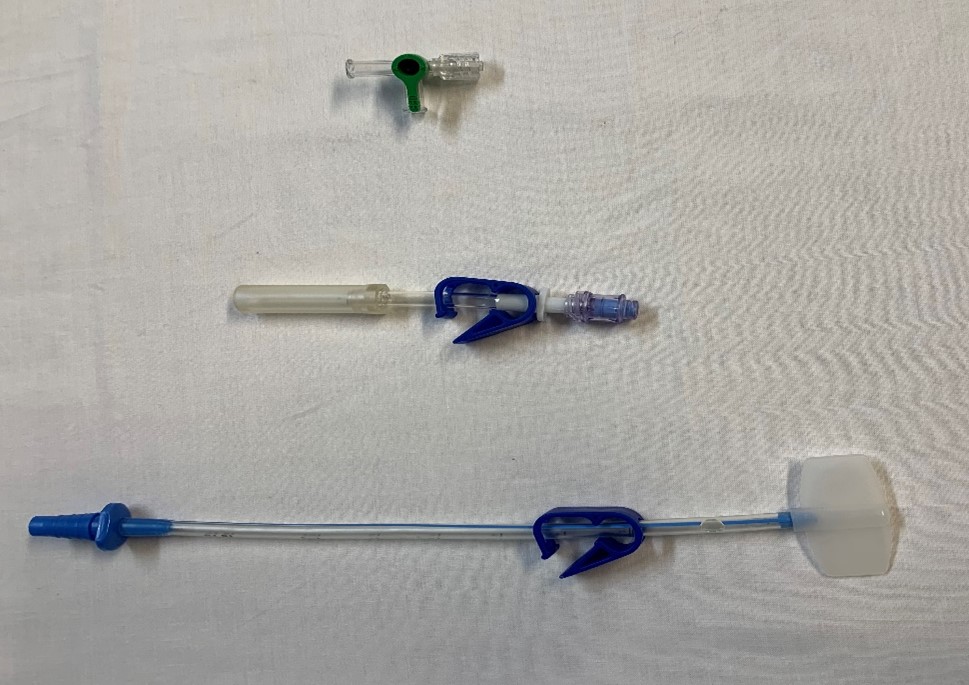

Trochar Chest Drain with Christmas Tree end DR2012T Required

Products required for set up

Training: Trocar Chest Drain With ‘Christmas Tree’ End DR2012T No Kit No Active Drainage

Learn about our Trocar Chest Drain With ‘Christmas Tree’ End DR2012T, not as part of a kit with no active drainage. View our other products and training materials.

Assembly:

1. Once drain is in place, attach Needle Free drain connector DR-FNV-3 to the Christmas Tree end of the drain (for secure attachment it is recommended to use cyanoacrylate glue – tissue glue).

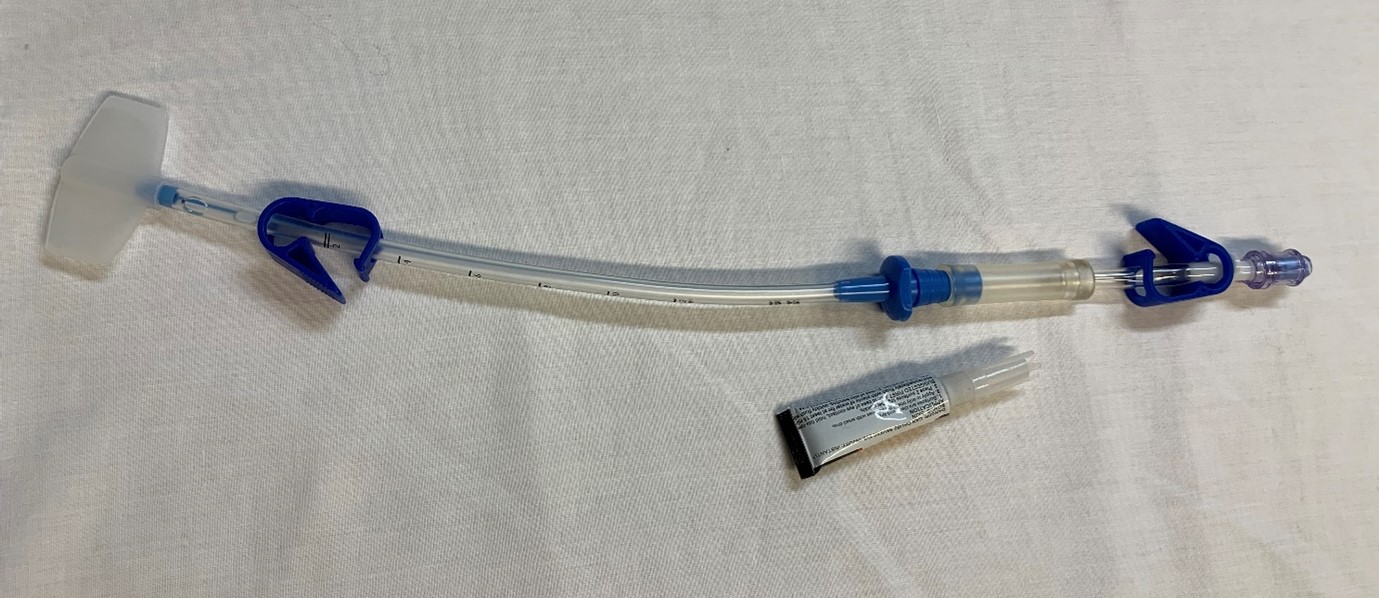

Trochar Chest Drain with Christmas Tree end DR2012T Step 1

Step 1 Chest Drain and DR-FNV-3 connected

2. Attach 4-way stopcock SC4-W1FG or SC4-W3NB to the end of the Needle Free drain connector DR-FNV-3.

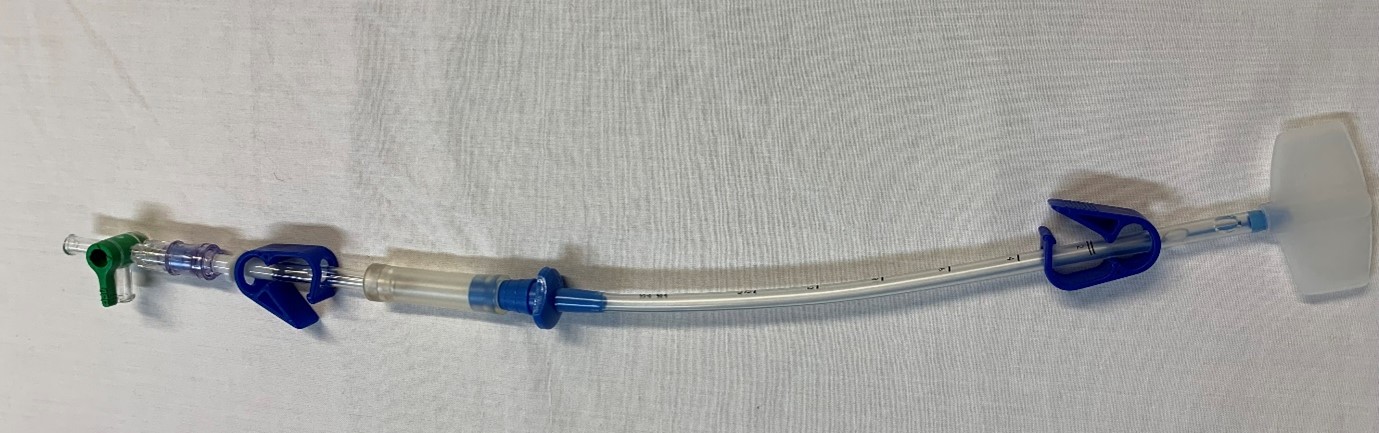

Trochar Chest Drain with Christmas Tree end DR2012T Step 2

Step 2 Stopcock connected

3. Setup is ready to be used!

NB. You can use Active Drain Extensions or Heimlich Pillow Valve if you wish to.
